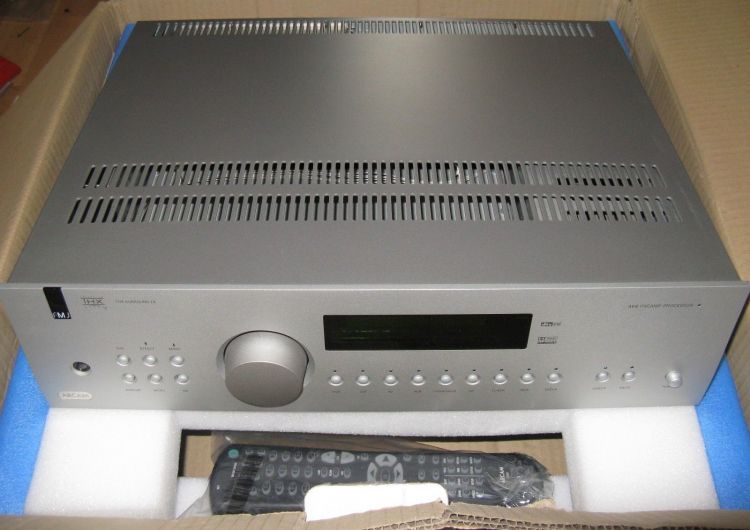

Pre-Processor เทพๆ จาก ARCAM กล่อง คู่มือ รีโมท (เริ่มเหนียวแล้ว) สายไฟ ครบๆ

แค่ภาพ DAC ก็คุ้มแล้ว

ขาย 27000

089-4505551

line: pisut_pae


System Features
Lucas Film THX Ultra2 Certified
THX Surround EX 7.1 Channels
Dolby Digital, Dolby Pro Logic II, DTS, DTS NEO, DTS 6.1
DVD-A / SACD multi - channel 8 way input
Zone 2 Audio and Video, with independent On-Screen Display
3 Component inputs with On-Screen Display (HDTV compatible without OSD)
Lip Sync delay up to 200ms for de-interlacer / frame scaler
Software upgradeable via RS232 interface
Acousteel damping, constrained layer case construction
High quality full analog stereo bypass
Optional analog stereo bypass + subwoofer
Optional analog stereo bypass + ambience extraction and subwoofer
High quality DVD-A / SACD 8 channel analog input
Digital effect modes:- Music, Party, Club, Hall, Cathedral, Sports Stadium
5x nameable presets, each store complete system set up
Upgradeable modular design
Universal supply voltage of 85V-265V
Very low noise, semi resonant, audio clock synchronized, switched mode PSU
Control Features
RS232 control of all commands
Software upgradeable via RS232
RC5 remote jack input for Main zone
RC5 remote jack input for Zone 2
Separate RC5 on, off, mute, un-mute commands
Selectable RC5 system codes 16 or 19 for each zone
Output of all received IR via cable or IR blinker, to control source components
12V current limited 100mA trigger outputs for main and zone 2

Audio Inputs and Outputs
8x analog stereo inputs
8x channel DVD-A / SACD input
Headphones output for main or zone 2
8x channel main output + 3 sub outputs
7x digital inputs, re-assignable
5x Coaxial
2x Optical
1x digital output, coaxial

Video Inputs and outputs
5x composite inputs
4x composite outputs
2x Monitor
1x Zone 2 composite output
1x VCR composite output
5x S-video inputs
2x S-video output
1x Monitor
1x S-Video VCR composite output
3x component inputs, HDTV / progressive scan compatible
1x component output, HDTV / progressive scan compatible
Supplied with back-lit CR80 or CR100 learning remote control with support for up to 7 other components
Large, clear 12 character dimmable VFD front panel display
Ground lift switch
Size – 430mm wide, 360mm deep, 130mm high
Weight (net) 9kg
