"Parrot - AR.Drone"

AR.Drone นอกจากจะบินได้ด้วยใบพัด 4 ใบซึ่งมีความเสถียรสุด ๆ เมื่อเทียบกับแบบที่เราเห็นแบบใบพัด 2 ใบ จุดเด่นคือจะมีกล้องติดที่ตัวเคร้่องด้วย ซึ่งในวง Wireless เดียวกันสามารถใช้ App ที่เป็นทั้ง iPhone และ Android ควบคุมได้ และที่สำคัญ จะมองเห็นภาพวิดีโอ stream จากตัวเครื่องลงมาที่ตัวมือถือด้วย?

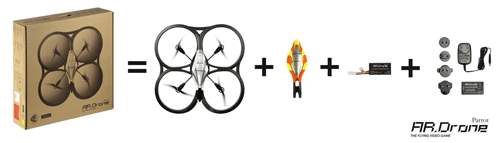

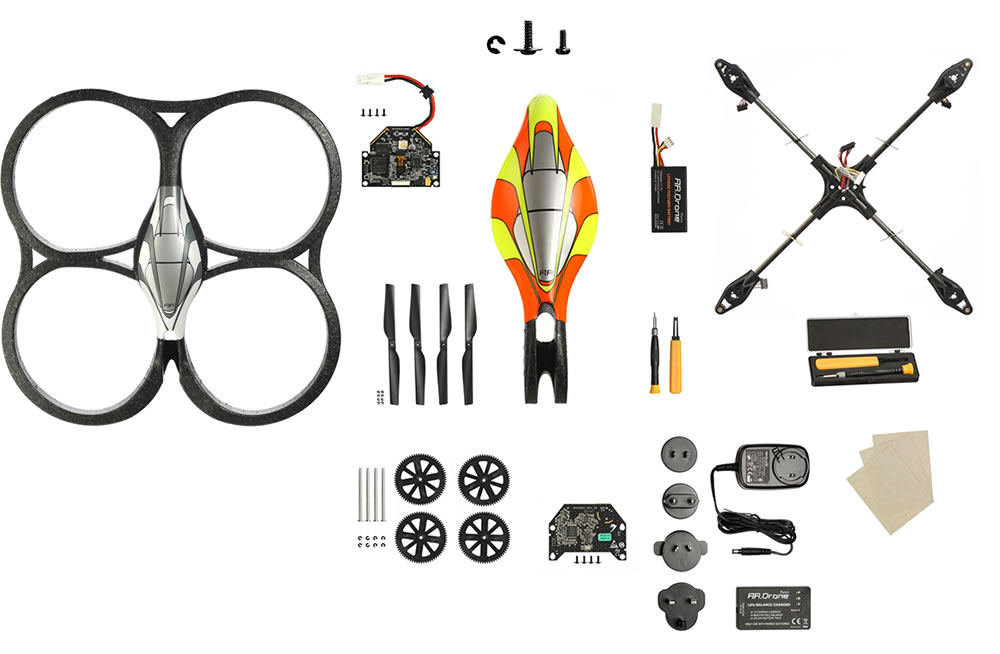

ชุดเฮลิคอปเตอร์บังคับ AR Drone ประกอบด้วย : ตัวลำพร้อมบิน, หน้ากากเพื่อบินในร่ม(4 ห่วง), หน้ากากบินนอกบ้าน(มีให้เลือก 3 สี), แบตเตอรี่, เครื่องชาร์จพร้อมตัวแปลงไฟบ้าน

AERONAUTIC STRUCTURE
High-efficiency propellers(specially designed for the Parrot
AR.Drone)
Carbon-fiber tube structure
MOTORS AND ENERGY
4 brushless motors, (35,000 rpm, power: 15W)
Lithium polymer battery (3 cells, 11,1V, 1000 mAh)
Discharge capacity: 10C
Battery charging time: 90 minutes
FRONT CAMERA: WIDE ANGLE CAMERA
93? wide-angle diagonal lens camera, CMOS sensor
Encoding and live streaming of images on iPhone
Camera resolution 640x480 pixels (VGA)
Other AR.Drone detection
- Validation of shots fired at enemy drones
- Estimate of distance
- Detection distance: 5 meters(16.4 ft)
3D tag detection
- Positioning of virtual objects
- Calculation of markers of virtual objects
- Detection distance: 30 centimeters to 5 meters (1ft to 16.4 ft)
Video feedback on the iPod touch /iPhone screen
ULTRASOUND ALTIMETER
Emission frequency: - 40kHz
Range 6 meters (19.7 ft) Vertical stabilization
VERTICAL CAMERA: HIGH SPEED CAMERA
64? diagonal lens, CMOS sensor
Video frequency: 60 fps
Allows stabilization even with a light wind
EMBEDDED COMPUTER SYSTEM
ARM9 468 MHz
DDR 128 Mbyte at 200MHz
Wifi b/g
USB high speed
Linux OS
SPECIFICATIONS
Running speed: 5 m/s; 18 km/h
(16.4 ft per second; 11.2 miles per hour)
Weight:
- 380 g with outdoor hull (0.8 pounds)
- 420 g with indoor hull (0.9 pounds)
Flying time: about 12 minutes
DIMENSIONS
With hull:
52,5x51,5cm (20.7 inches x 20.3 inches)
Without hull:
45x29cm (17.7 inches x 11.4 inches)
INERTIAL GUIDANCE SYSTEMS
WITH MEMS
3 axis accelerometer
2 axis gyrometer
1 axis yaw precision gyrometer
SAFETY SYSTEM
EPP hull for indoor flight
Automatic locking of propellers in the
event of contact
UL2054 battery
Control interface with emergency button
to stop the motors
อันนี้เป็นรีวิวครับ :http://www.siampod.com/2010/12/02/review-parrot-ar-dron/
ราคา : 9,500 ฿ (สามารถต่อรองได้น่ะครับ) ของเป็นของซื้อมาใหม่ที่ยังไม่ได้แกะเล่นเลยอ่ะครับ
สนใจติดต่อได้ที่ : 084-322-7159 หรือ 086-053-6208 MSN: [email protected]
นัดรับของได้ครับ ใครสนใจก็ลองโทรมาคุยหรือแอด MSN หรือPM มากันก่อนได้น่ะครับ
